Description
Features:
- 100% Brand new and high quality.
- Perfect for Railway & Building Layout!
- Made with SMD LED.
- Perfect for small models and really tight places!
- Soldering SMDs is very difficult,but these pre-wired units take all the work out of it for the modeler.
- This kind of soldering is very extensive and difficult to perform,but is offering maximum flexibility when applying the LED and is ensuring place-saving usage.
- The wire length is about 50cm.
- Pre-wired with the rectifier,it can work with both AC and DC power.
- Pre-wired with the resistor,it can work with 12V power directly.
Specification:

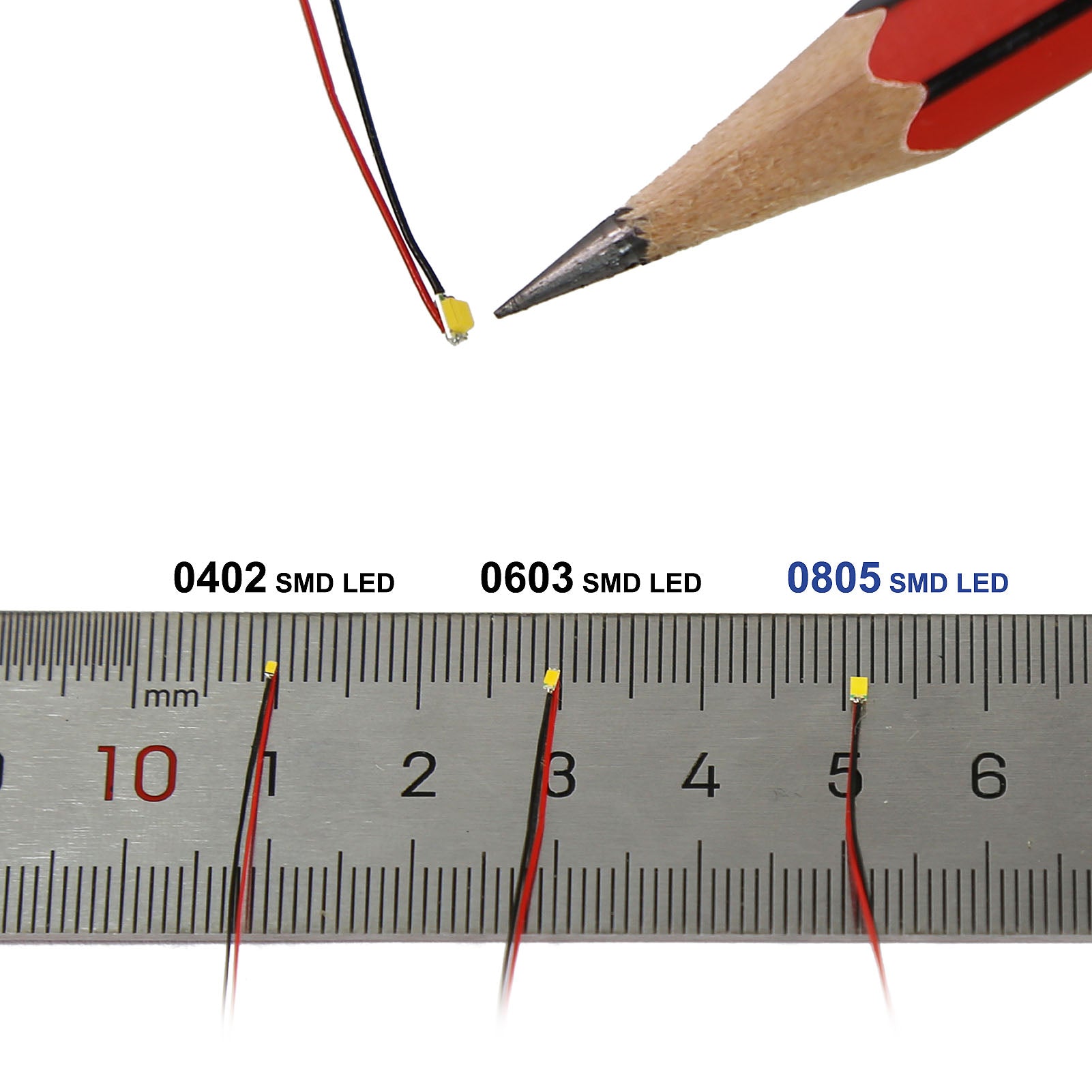

- Size:SMD LED 0805 (2x1.25mm),the wire is 28awg 50cm long.
- Operating Voltage: 9V to 18V(1000 Ohm resisitor in series), AC and DC Compatible.
- Operating Current: 15mA/20mA.
- Viewing angle:120.

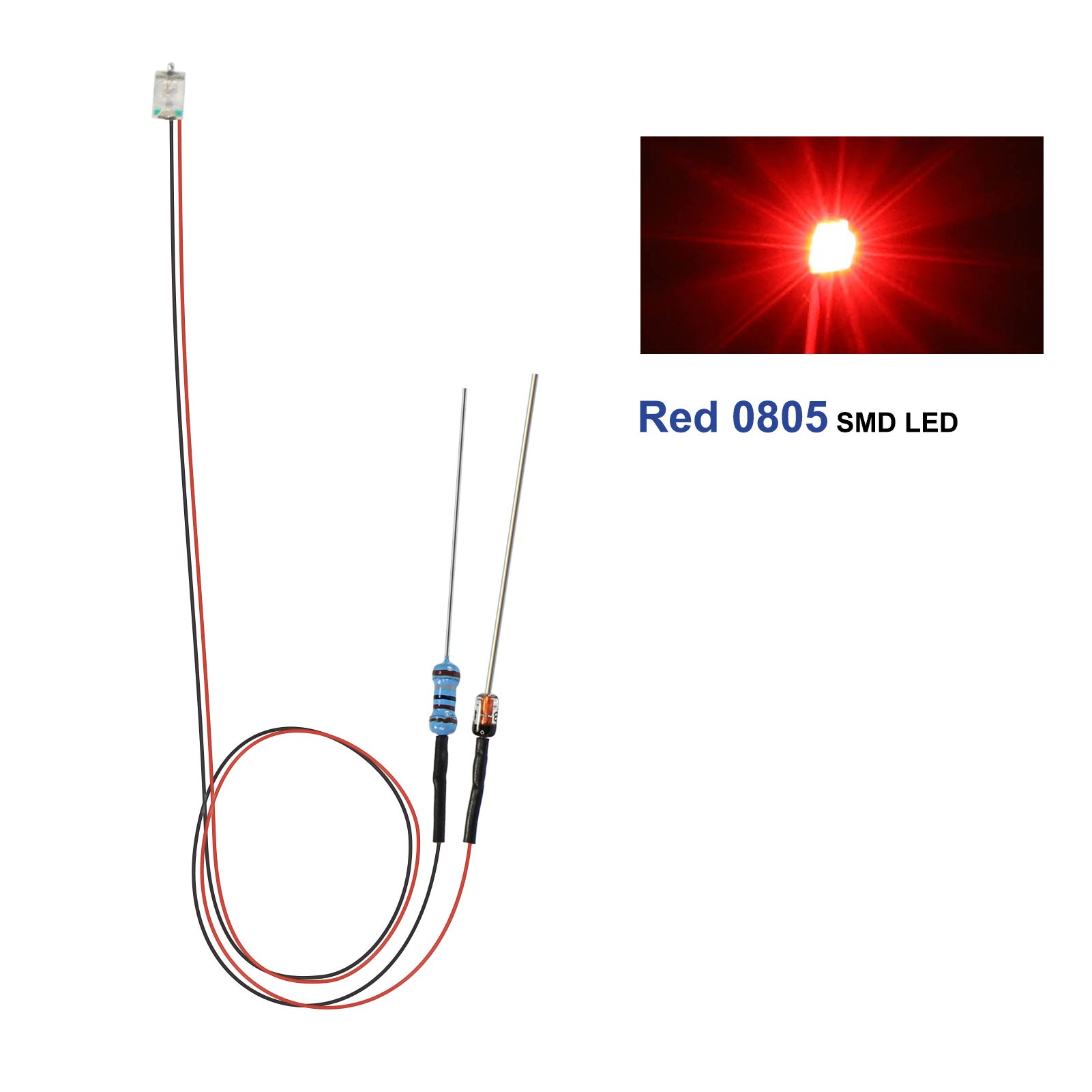

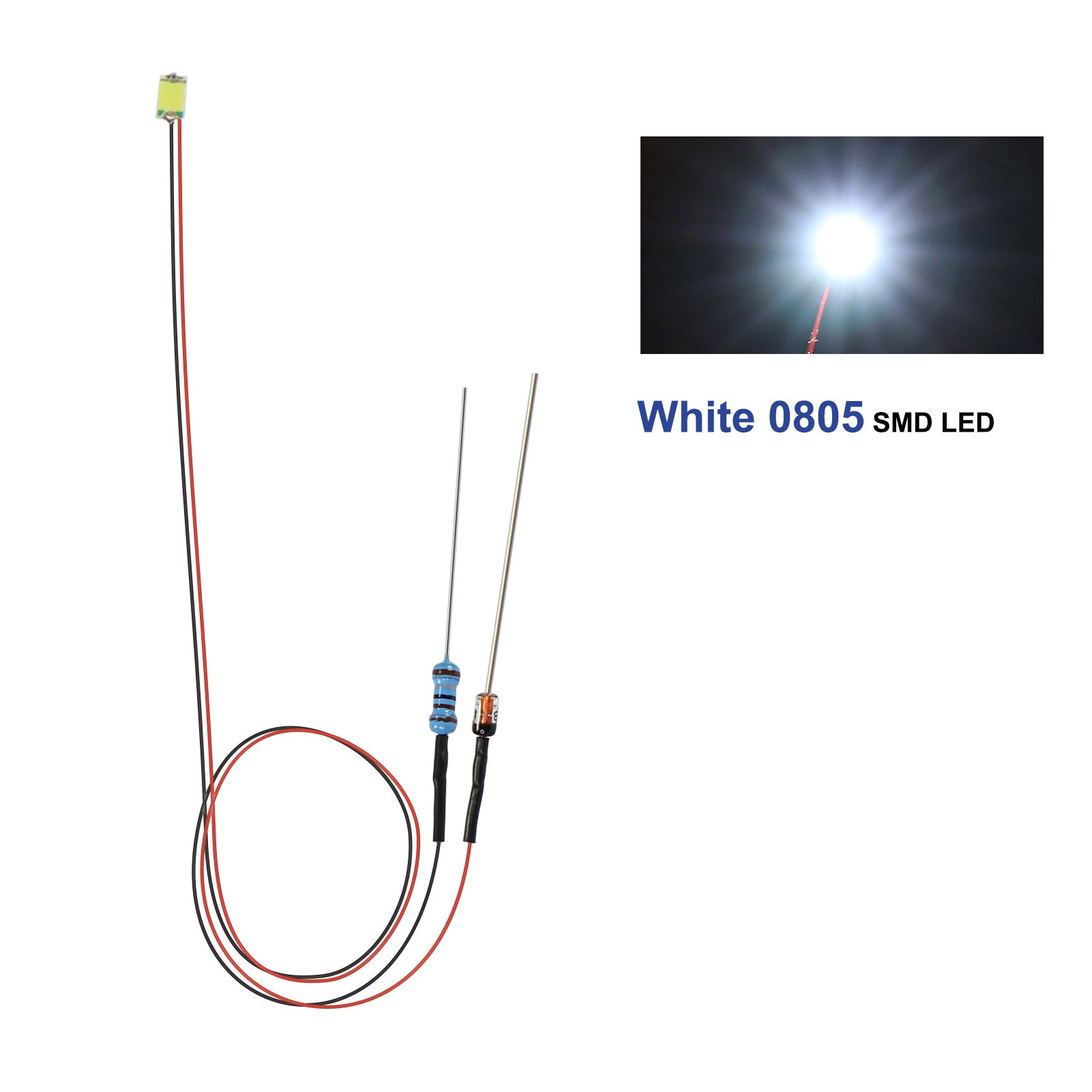

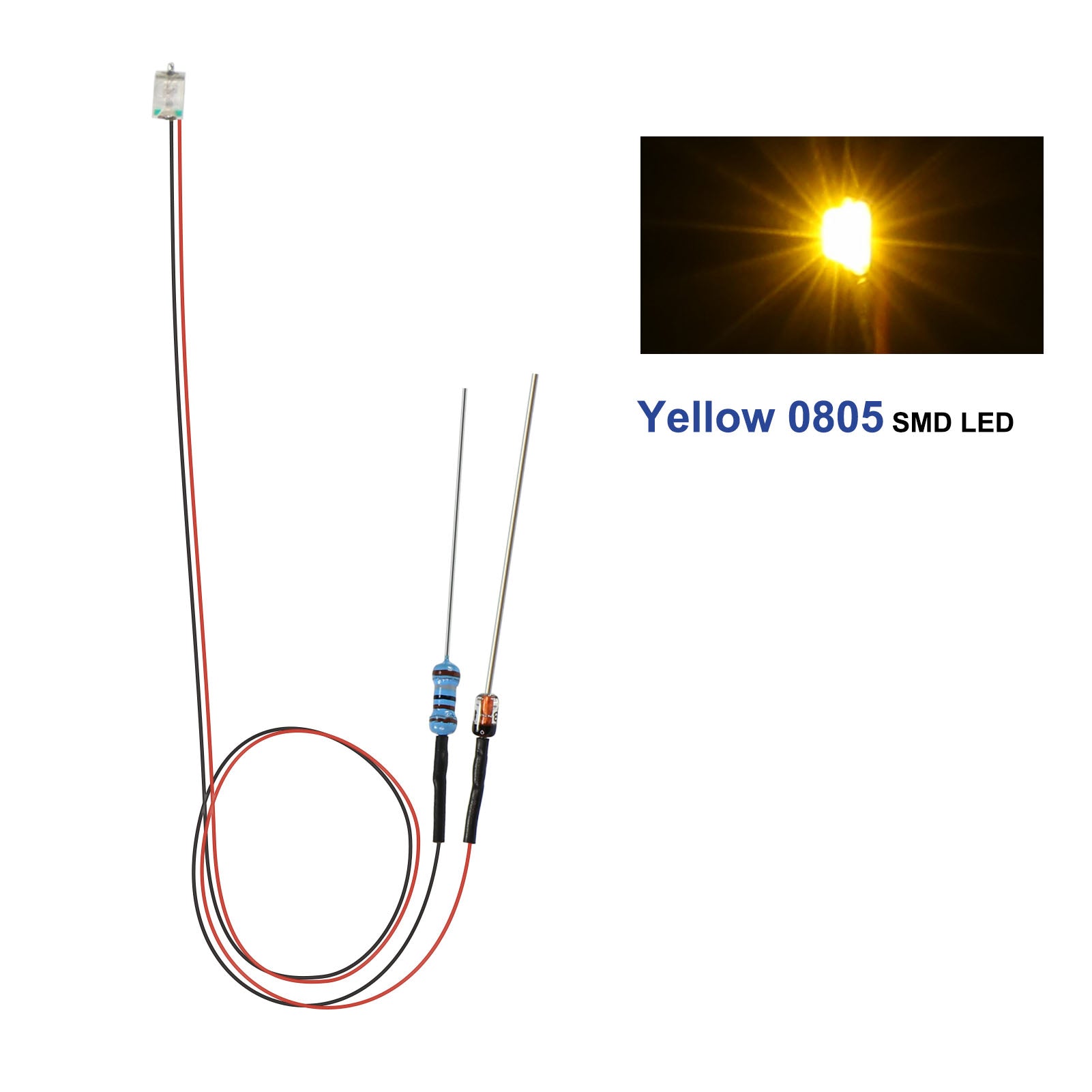

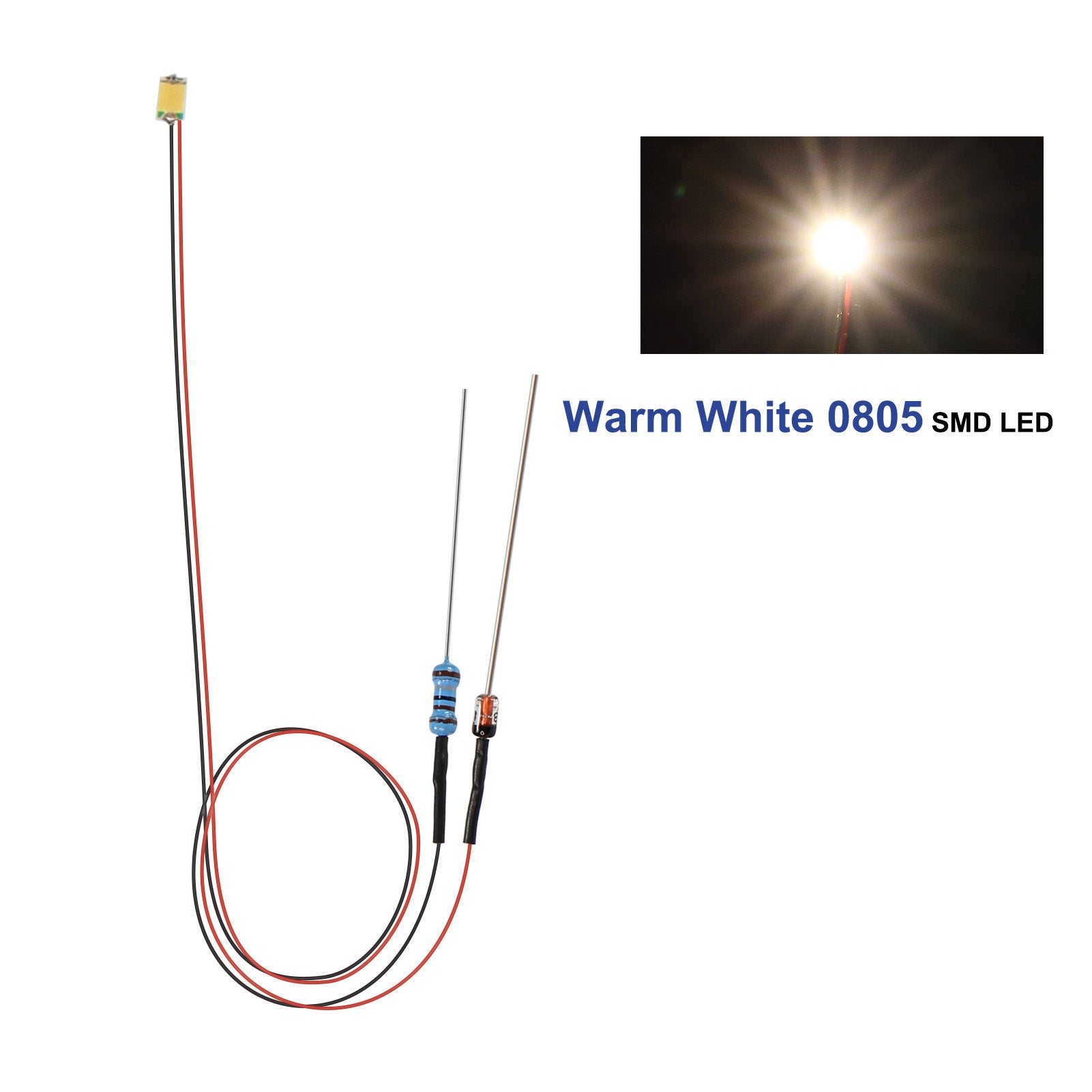

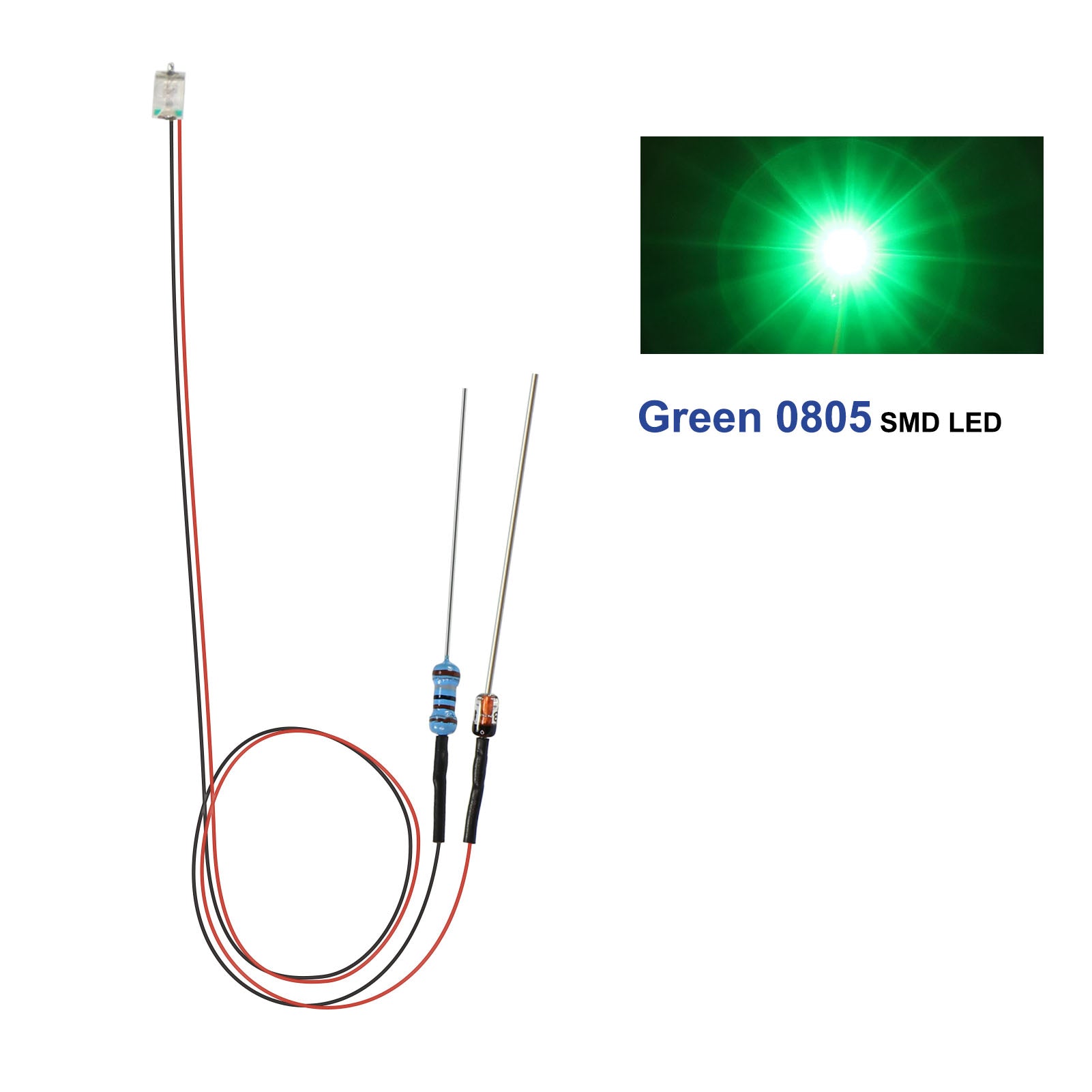

- Emitting color:Warm White, Bright White, Red, Green, Blue or Yellow.
Package included:
- 20pcs pre-soldered with 50cm wire SMD LED.(the resistor had been pre-soldered for 9V to 18V operation)
