Description
Features:
- 100% Brand new and high quality.
- Perfect for small models and really tight places.
- Made with warm white LEDs.
- Soldering SMDs is very difficult,but these pre-wired units take all the work out of it for the modeler.
- This kind of soldering is very extensive and difficult to perform，but is offering maximum flexibility when applying the LED and is ensuring place-saving usage.
- For optimal insulation is made from a highly heat-resisitant material with a high Teflon fraction.That's why during soldering there is almost no longitudinal shrinkage.
- The wire length is about 200mm.For easy recognizable connecting,the Cathode is about 10mm shorter than the Anode.
Specification:

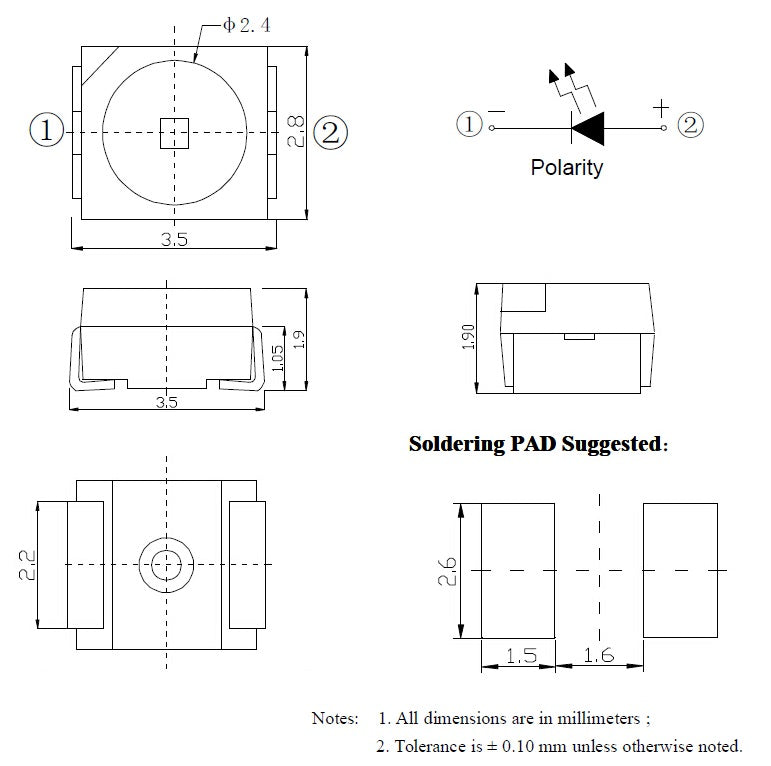

- Size: Its SMD LED 3528(3.50×2.80mm）,wire is about 20cm(L).
- Operating Voltage: 2.8V to 3.4V, AC or DC Compatible.
- Operating Current: 15mA/20mA.
- Viewing angle:About 120 degree.

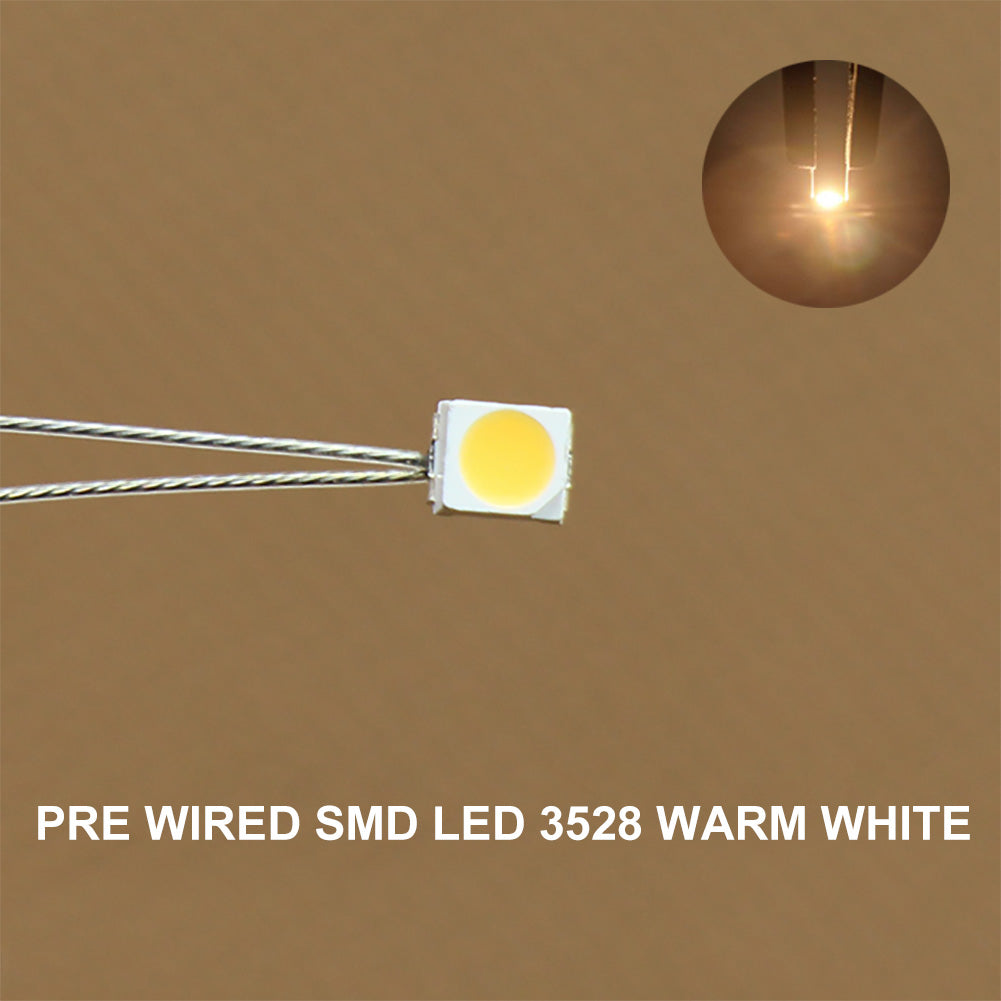

- Emitting color:Warm White
Package included:

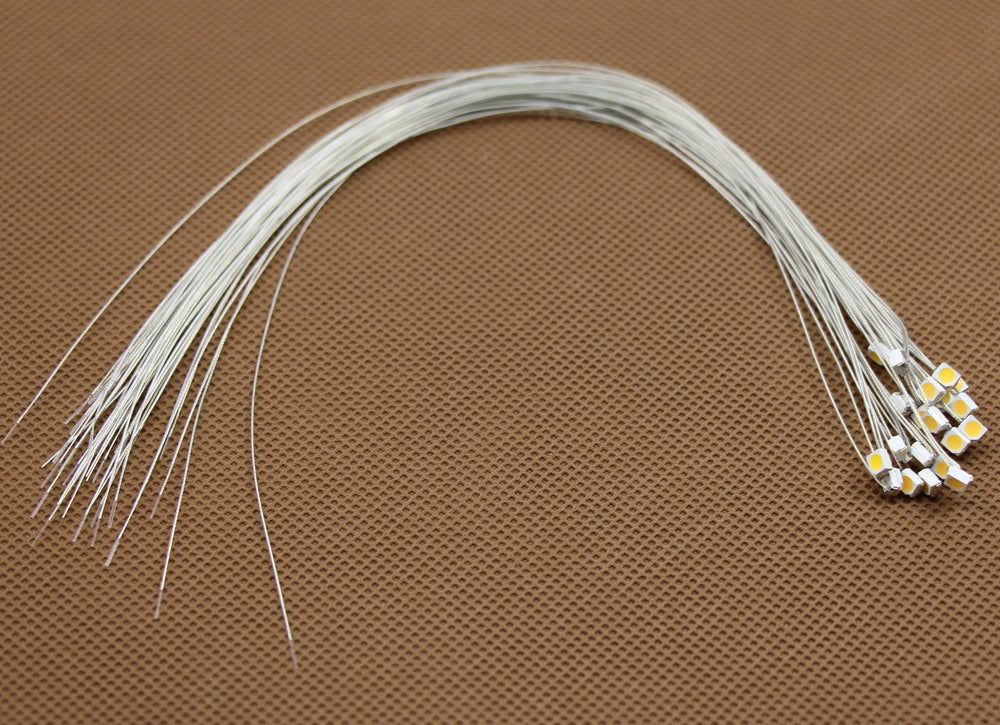

- 20pcs pre-soldered with wire micro litz wired leads SMD Led 3528.
- 20pcs resistors(not pre-soldered) for 9-18V operation.
