PCB015 1 Unit Distribution Module 20A Power Distributor 3 Inputs 2X10 Outputs AC DC


Price:
Sale price$12.99

Description

Features:
  • Brand new. Perfect for small models and really tight places!
  • This distribution is the ideal solution for the model train to supply all lighting.
  • Operation with DC, AC or digital current.
  • 3 input terminals.
  • 2*10 output terminals.
  • 4 holes for mounting with wide spacers.
Specification:

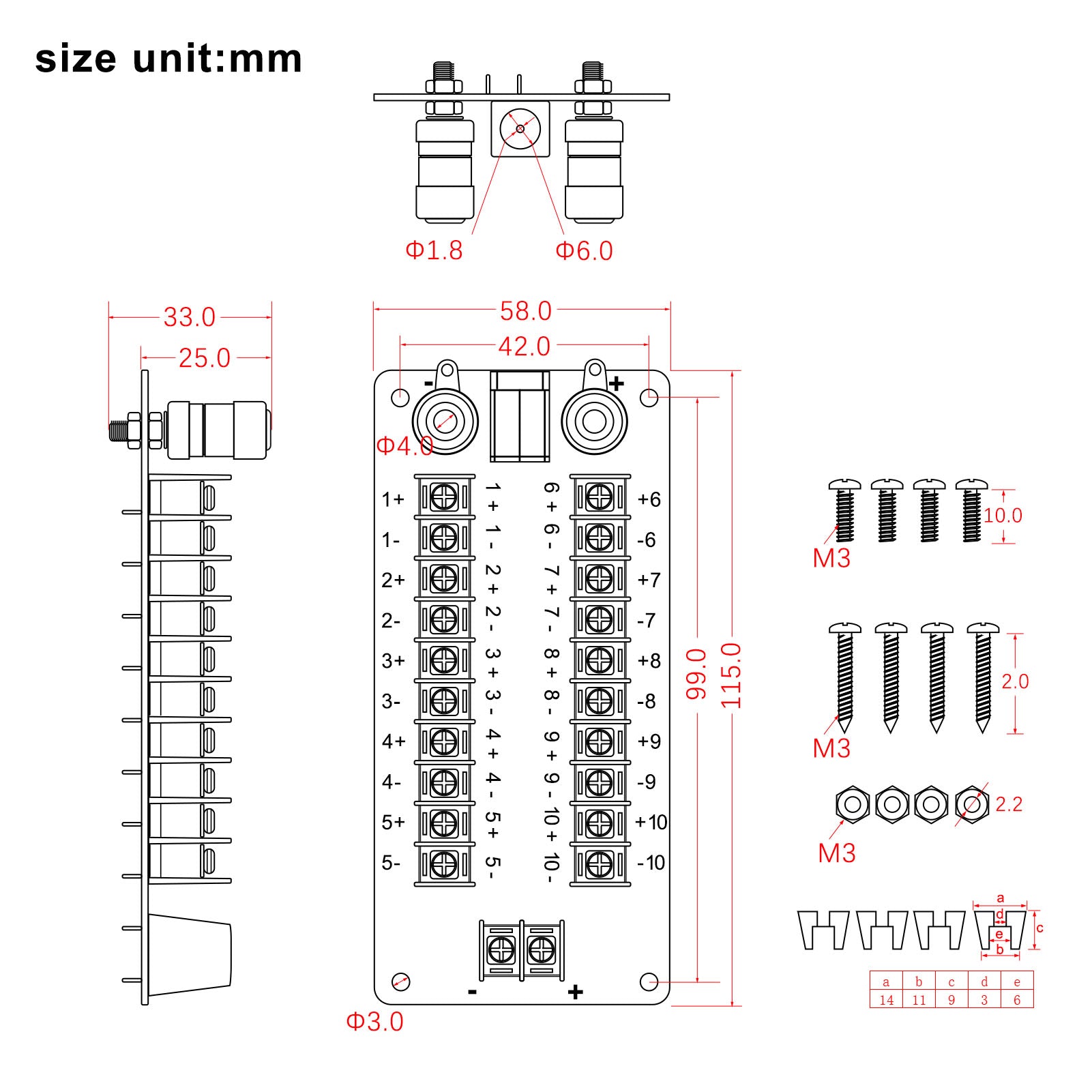

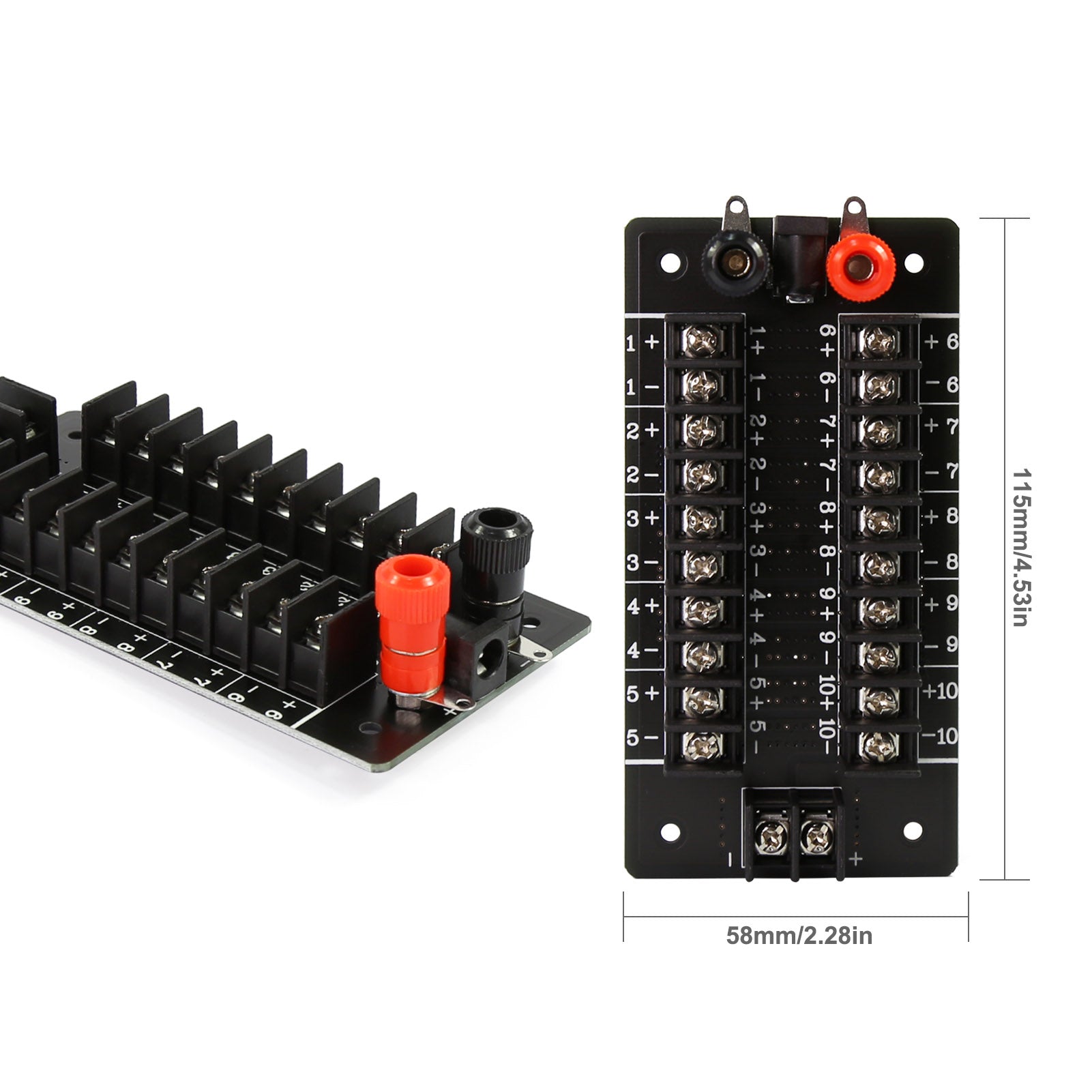

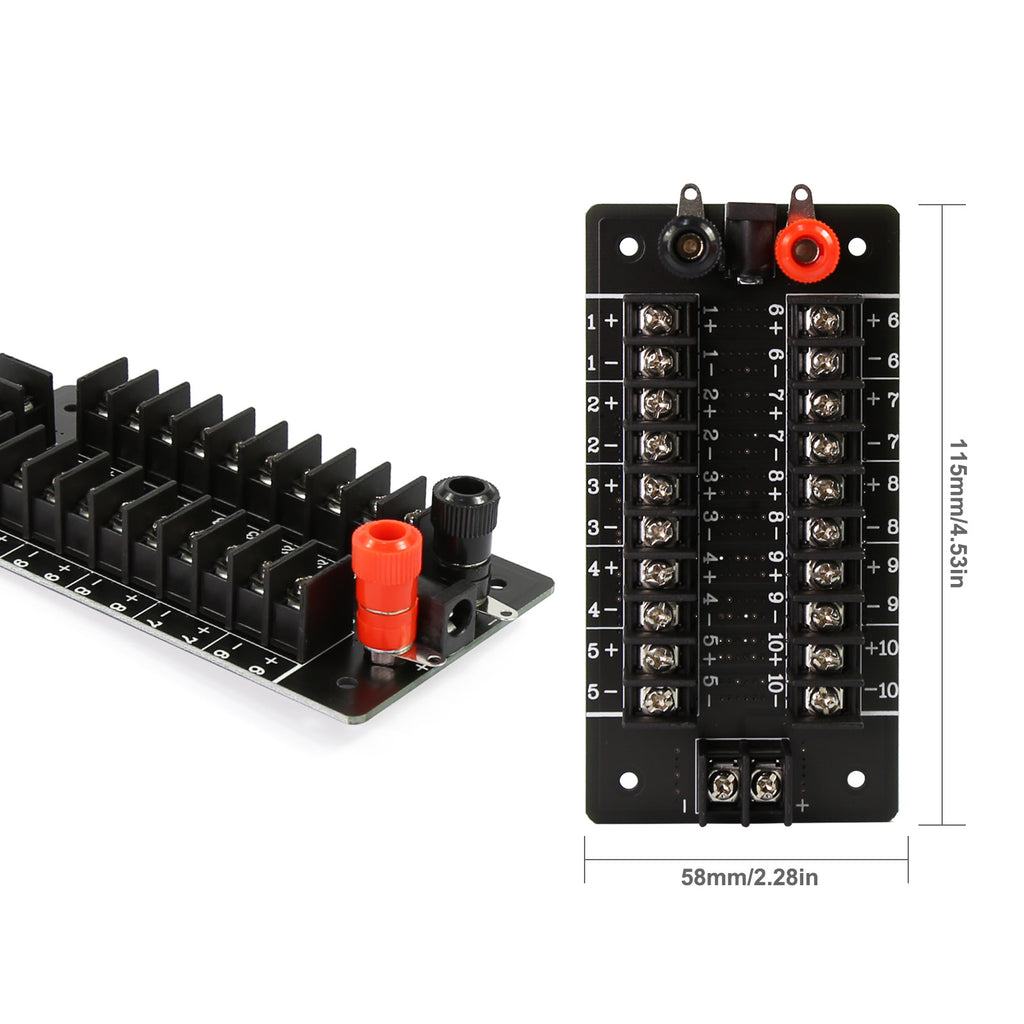

  • Size: as the picture shows.

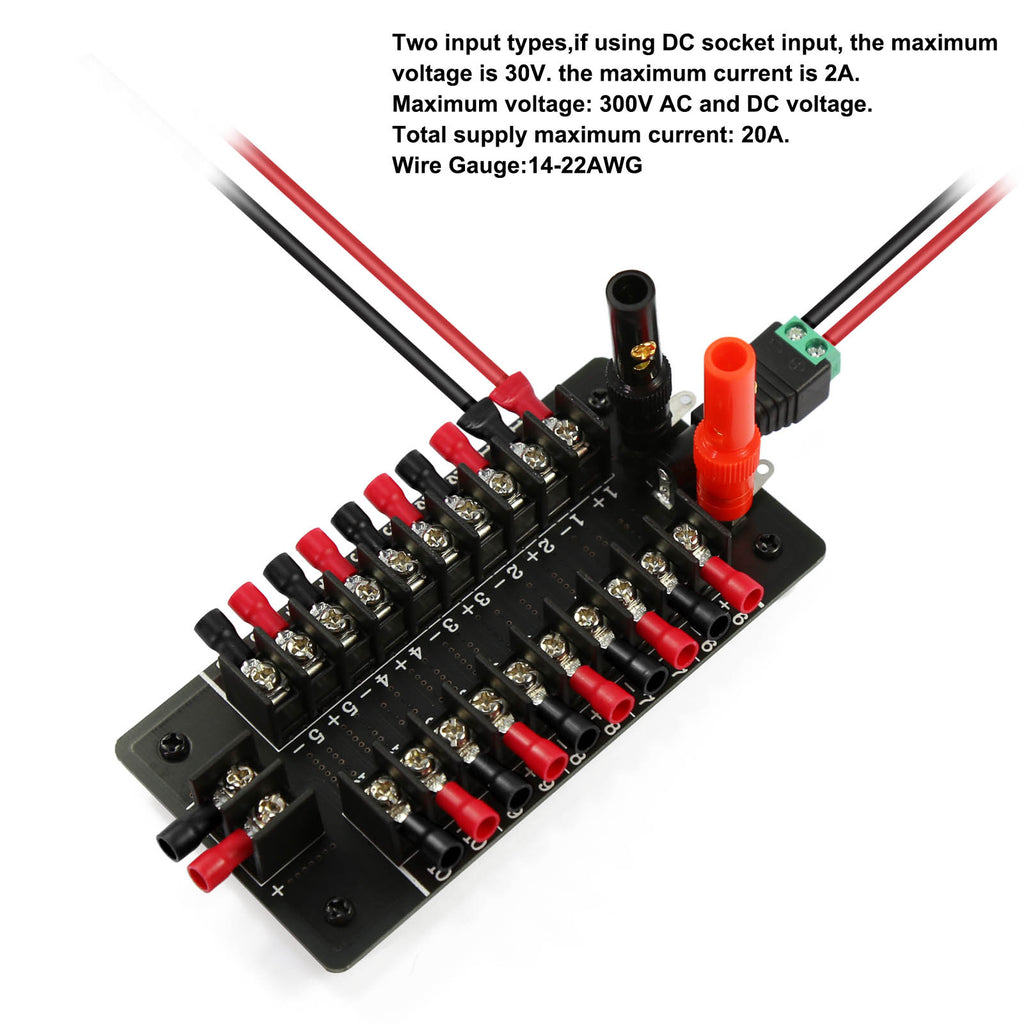

  • Two input types, if using DC socket input, the maximum voltage is 30V. The maximum current is 2A.
  • Maximum voltage: 300V AC and DC voltage.
  • Total supply maximum current: 20A (2-pole Power supply to terminal).
  • Wire Gauge: 14-22AWG.

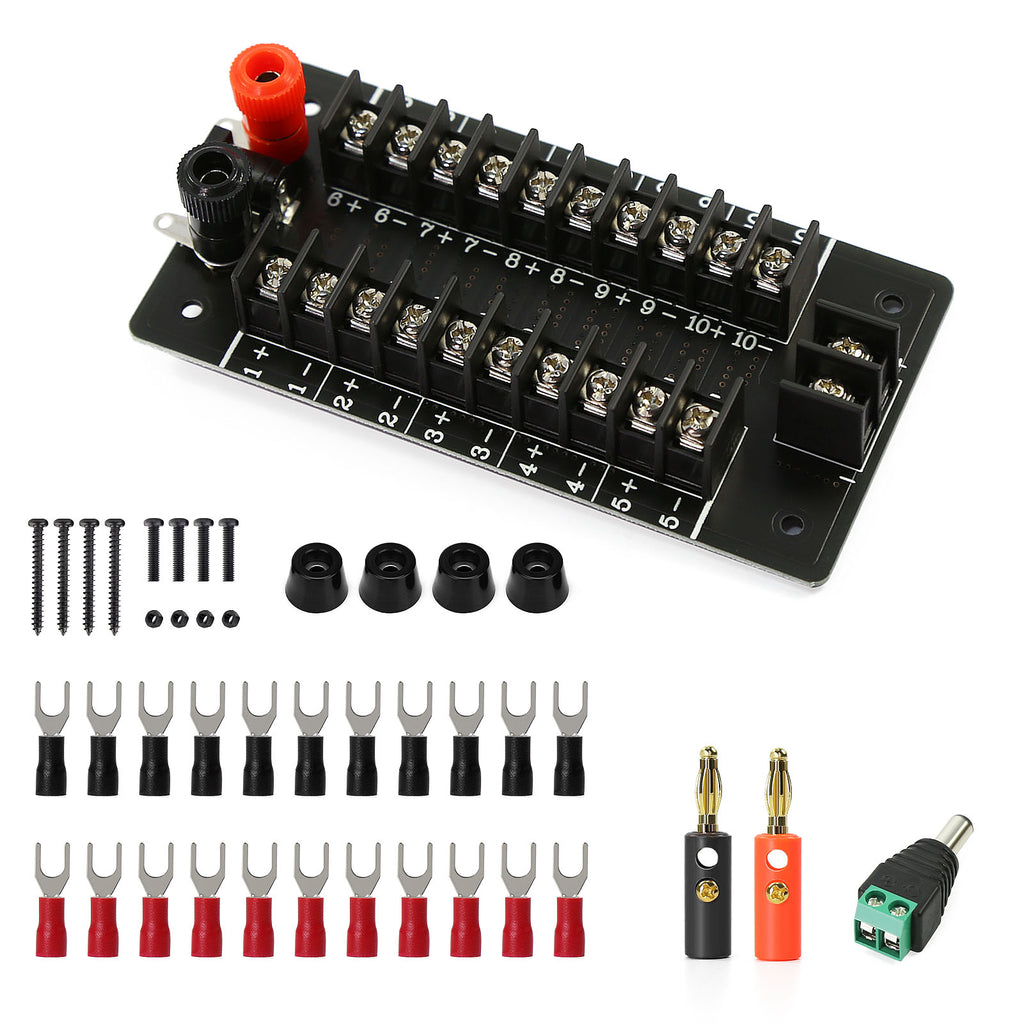

Package included:
  • 1x Power distribution board.
  • 1x Red banana plug.
  • 1x Black banana plug.
  • 1x DC plug.
  • 9x Red spade terminal connectors (support wire AWG22-16).
  • 9x Black spade terminal connectors (support wire AWG22-16).
  • 4x Rubber Spacers.
  • 4x M3x20 Metal Cross round-head self-tapping screws.
  • 4x M3x10 Metal cross round-head bolts.
  • 4x M3 Hex nuts (to use with round-head bolts).
